Product characteristic No.4

Reliable super strong bearing

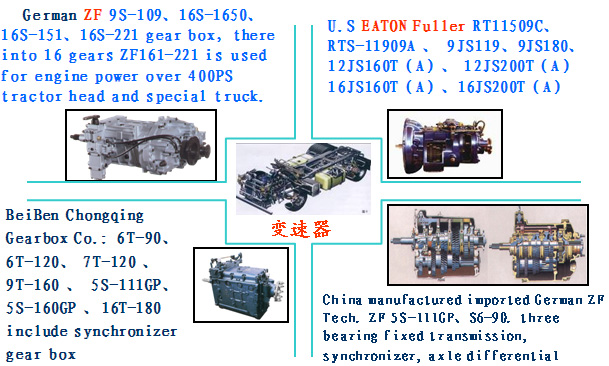

  Gear box


  Axles

1 ¡¢ BeiBen axles are fully imported Benz axle tecnology, manufactrued according to German standards.

2 ¡¢£¨ font axle £º 7.5t, rear £º 13t £©¡£

3 ¡¢ wheel differential lock option ¡£

4 ¡¢ Auto adjust arm



Itme

Rated load (t)

Wheel tread (mm)

Brake (mm)

Gear ratio

Model

Benz front axle

7.5

1980

¦µ410x180

---

I beam

Benz

Driving front axle

7

1980

¦µ410x180

4.76
5.263
5.921
6.733

Cast steel

Point

High load ¡¢ good ground clearance £¬ strong cast steel


Itme

model

Rated load (t)

Wheel tread
(mm)

Brake
(mm)

Min. ground clearance(mm)

Gear ratio

Benz mid axle

Cast steel, hub reduction gear

13T

1800

¦µ 410X180

339

4.769
5.263
5.921
6.733
7.63

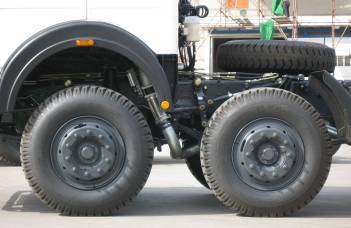

Benz rear axle

Cast steel, hub reduction gear

13T

1800

¦µ 410X180

339

4.769
5.263
5.921
6.733
7.63

Point

Cast steel, light weight, good ground clearance, high pulling torque


  Brake


Reliable braking torque
insure the truck safety

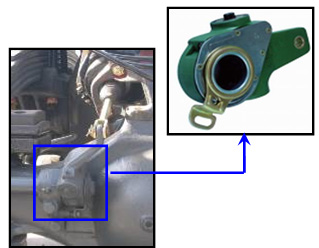

Brake automatic slack adjuster £º
keeps service brake at optimum efficiency , improves the safty of driving.

  Chassis

Benz tech. chassis form¡¢combine china heavy-duty truck characteristic optimize£»
2¡Á2500 compressor once pounch forming£¬inner and outer layer fit tighten£¬very good bending resistance
Double layers,Double safe guard

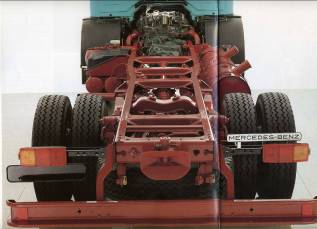

  Frame

Equal wide combined frame

¡ñ Structure£º Outside width 860mm£¬
long beam section£º
300X8X6 mm

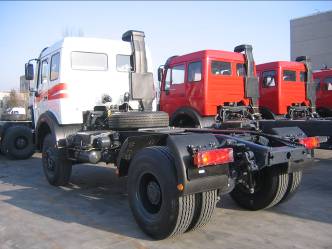

Beiben tractor dedication frame

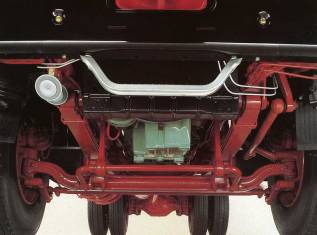

CROSSMEMBER COMPL

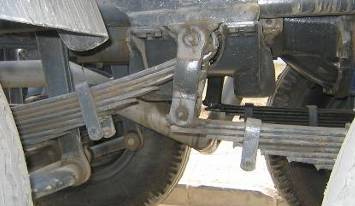

  Suspension

core technology£º two front alxe six point bearing model suspension

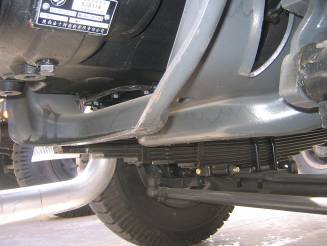

front£º Leaf spring + telescopic shock absorber + stabilizer anti-roll bar
rear£º Benz stabilization suspension
